MDR-10 15V 0,67A

Mean Well DIN rail power supply series MDR-10

Switching power supplies with 10W, a universal input, a built-in DC OK signal, a low no-load power, an LED indicator for power on and screw terminals. These devices are suitable for DIN rail mounting and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fanless design and comply with EN62368-1, EN55032 class B, EN61204-3 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: MDR-10-5, MDR-10-12, MDR-10-15 and MDR-10-24.

  • single output
  • output: 10W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 70A
  • leakage current: <1mA
  • no-load power: <0,75W
  • overload protection: >105%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -20 to +70°C
  • weight: 170g

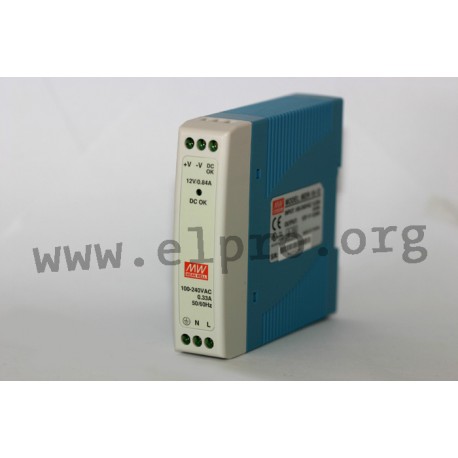

Meanwell MDR-10 series

MDR-10 15V 0,67A

30715 MDR-10 15V 0,67A MDR-10-15 MDR-10-15 Mean Well DIN rail power supply series MDR-10. Switching power supplies with 10W, a universal input, a built-in DC OK signal, a low no-load power, an LED indicator for power on and screw terminals. These devices are suitable for DIN rail mounting and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fanless design and comply with EN62368-1, EN55032 class B, EN61204-3 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: MDR-10-5, MDR-10-12, MDR-10-15 and MDR-10-24. single output output: 10W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 70A leakage current: &lt;1mA no-load power: &lt;0,75W overload protection: &gt;105% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -20 to +70°C weight: 170g

Specifications

manufacturer
Manufacturer's name MDR-10-15
Output voltage [V] 15
Phase 2 phase
Efficiency [%] 81
Output current range [A] 0...0,67
Output voltage tolerance: [%] 3
Output power [W] 10
Ripple [mVp-p] 120
Data Sheet

Unit price

10,59 €

Volume discounts

Quantity Unit price
50 + 9,79 €

Stock: 100
Further delivery:
CW 32/2024
