PLP-20-48

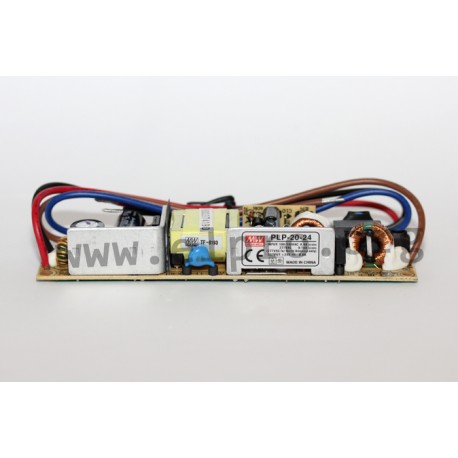

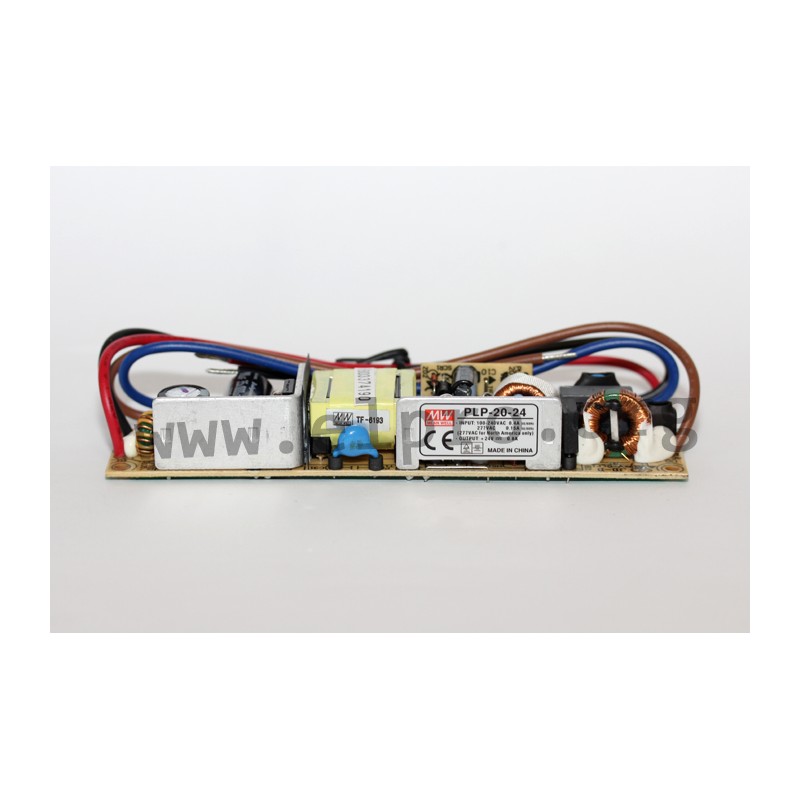

Mean Well LED driver series PLP-20

LED drivers in an open frame housing with a high reliability, 20W and a universal input. These devices comply with EN61347-1, EN61347-2-13, UL8750, EN55015 as well as EN61000-3-2 Class C and are suitable for LED lighting applications. They are protected against overvoltage, overcurrent, short circuit as well as overtemperature and have a built-in active PFC function. We offer the following types of this Mean Well series: PLP-20-18 and PLP-20-48.

  • single output
  • output: 19,8 to 20,2W
  • input voltage: 90 to 277V AC (47 to 63Hz), 127 to 392V DC
  • maximal input inrush current: 40A
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -30 to +60°C
  • weight: 120g
PLP-20-48

PLP-20-48

35756 PLP-20-48 PLP-20-48 Mean Well LED driver series PLP-20. LED drivers in an open frame housing with a high reliability, 20W and a universal input. These devices comply with EN61347-1, EN61347-2-13, UL8750, EN55015 as well as EN61000-3-2 Class C and are suitable for LED lighting applications. They are protected against overvoltage, overcurrent, short circuit as well as overtemperature and have a built-in active PFC function. We offer the following types of this Mean Well series: PLP-20-18 and PLP-20-48. single output output: 19,8 to 20,2W input voltage: 90 to 277V AC (47 to 63Hz), 127 to 392V DC maximal input inrush current: 40A withstand voltage I/P-O/P: 3750V AC operating temperature: -30 to +60°C weight: 120g

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name PLP-20-48
Output voltage [V] 48
Phase 2 phase
Output current adjustment [A] 75...100%
Efficiency [%] 83,5
Output current range [A] 0...0,42
Output power [W] 20,2
Ripple [mV] 3,8
Data Sheet

Unit price

13,69 €

Stock: 2
