PSAI 3,3V 6A

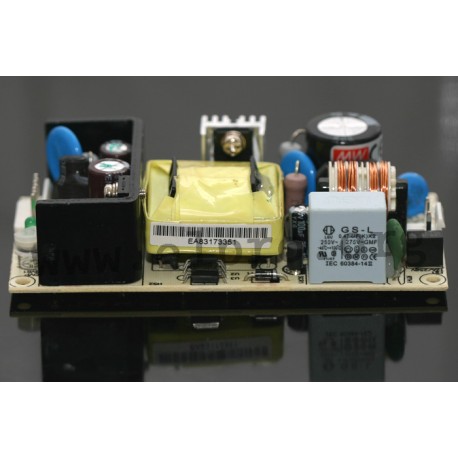

Mean Well power supply series PS-35

Open frame type switching power supplies with 35W and a universal input. These devices have PC pins for nylon-crimp terminals and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fixed switching frequency and comply with UL/EN60950-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: PS-35-3.3 and PS-35-15.

  • single output
  • output: 19,8 to 36W
  • input voltage: 90 to 264V AC (47 to 440Hz), 127 to 370V DC
  • maximal input inrush current: 45A
  • leakage current: <2mA
  • overload protection: 105 to 150%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -20 to +65°C

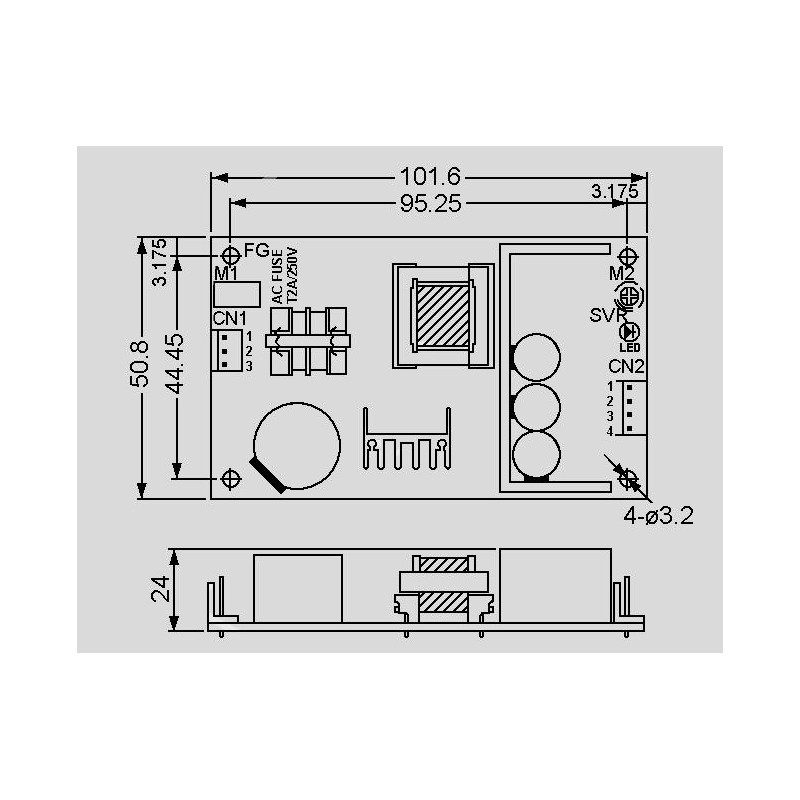

  • dimensions: 101,6x50,8x24mm
  • weight: 124g
Meanwell PS-35 series

PSAI 3,3V 6A

30709 PSAI 3,3V 6A PS-35-3.3 PS-35-3.3 Mean Well power supply series PS-35. Open frame&nbsp;type switching power supplies with 35W and a universal input. These devices have PC pins for nylon-crimp terminals and are&nbsp;protected against overload (auto recovery), overvoltage as well as short circuit. They have a fixed switching frequency and comply with&nbsp;UL/EN60950-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series:&nbsp;PS-35-3.3 and PS-35-15. single output output: 19,8 to 36W input voltage: 90 to 264V AC (47 to 440Hz), 127 to 370V DC maximal input inrush current: 45A leakage current: &lt;2mA overload protection: 105 to 150% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -20 to +65&deg;C dimensions:&nbsp;101,6x50,8x24mm weight: 124g

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name PS-35-3.3
Phase 2 phase
Efficiency [%] 70
Output current range [A] 0...6
Output voltage tolerance: [%] 2
Output power [W] 19,8
Output rated current [A] 6
Ripple [mV] 80
Data Sheet

Unit price

15,09 €

Stock: 19
