RPS-60-15

Mean Well power supply series RPS-60

Open frame type switching power supplies with 60W, a universal input and a low no-load power. These devices are suitable for medical technology applications (2xMOPP) and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a pin strip connection for nylon crimp terminals and comply with EN60601-1, UL/EN62368-1, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: RPS-60-3,3, RPS-60-5, RPS-60-12, RPS-60-15, RPS-60-24 and RPS-60-48.

  • single output
  • output: 33 to 60W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 60A
  • leakage current: <130µA (earth) / <100µA (touch)
  • output voltage adjustment: +10/-5%
  • no-load power: <0,75W
  • overload protection: 115 to 150%
  • withstand voltage I/P-O/P: 4000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -20 to +70°C
  • weight: 150g

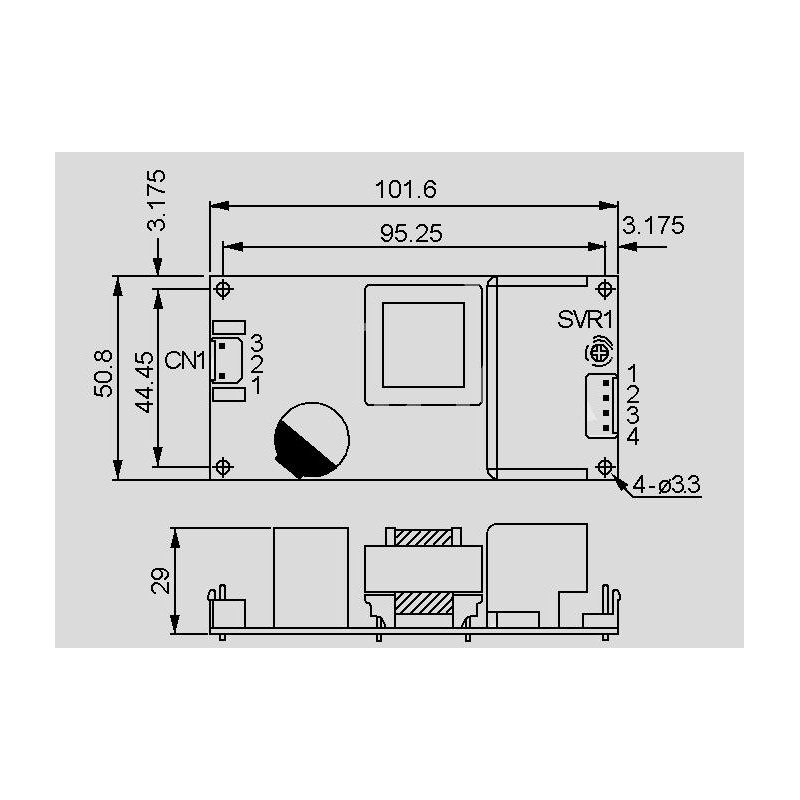

dimensions

RPS-60-15

30730 RPS-60-15 RPS-60-15 4711287427416 Mean Well power supply series RPS-60. Open frame type switching power supplies with 60W, a universal input and a low no-load power. These devices are suitable for medical technology applications (2xMOPP) and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a pin strip connection for nylon crimp terminals and comply with EN60601-1, UL/EN62368-1, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: RPS-60-3,3, RPS-60-5, RPS-60-12, RPS-60-15, RPS-60-24 and RPS-60-48. single output output: 33 to 60W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 60A leakage current: &lt;130µA (earth) / &lt;100µA (touch) output voltage adjustment: +10/-5% no-load power: &lt;0,75W overload protection: 115 to 150% withstand voltage I/P-O/P: 4000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -20 to +70°C weight: 150g

Specifications

manufacturer
Manufacturer's name RPS-60-15
GTIN 4711287427416
Output voltage [V] 15
Phase 2 phase
Efficiency [%] 84
Output current range [A] 0...4
Output voltage tolerance: [%] ±2
Output power [W] 60
Output rated current [A] 4
Output voltage adjustment [V] -5/ +10%
Ripple [mV] 150
Data Sheet

Unit price

10,99 €

Volume discounts

Quantity Unit price
50 + 10,19 €

Stock: 75
Further delivery:
CW 12/2026
