AK 700/04-5,0-H

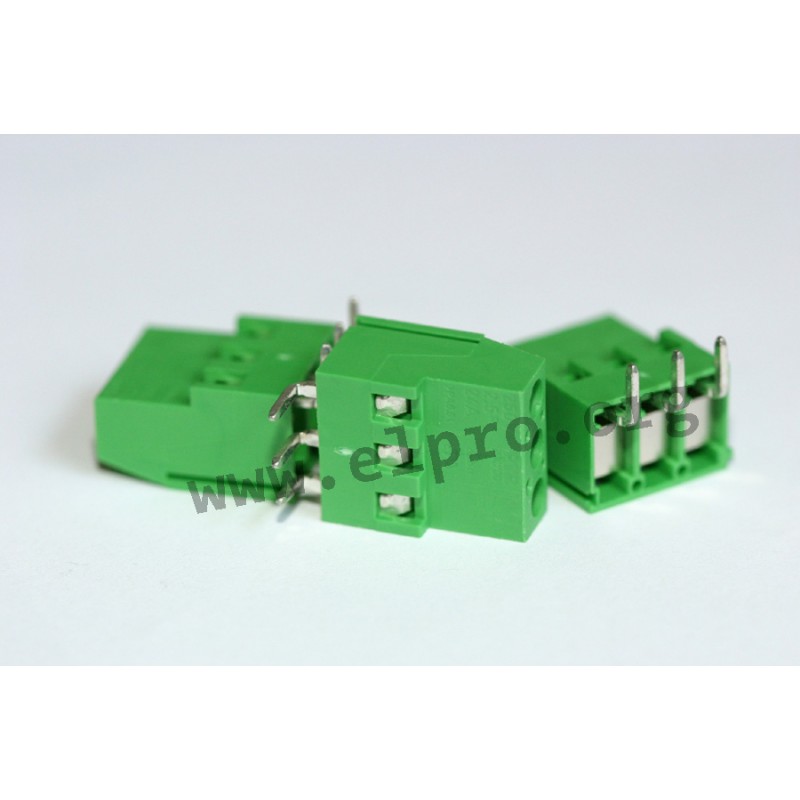

PTR terminal block series AK700

  • 2- to 6-pole terminal blocks in green with a 90° wire entry angle (top wire entry)
  • screw-cage clamp principle
  • suitable for a conductor cross-section of 4,0mm² (single-stranded wire) resp. 2,5mm² (fine-stranded wire)
  • insulator is made of PA (UL94V-0)
  • rated voltage: 250V
  • rated current: 24A
  • pitch: 5mm
PTR terminal blocks

AK 700/04-5,0-H

112430 AK 700/04-5,0-H AK700/4-5.0-H-GRÜN AK700/4-5.0-H-GRÜN PTR terminal block series AK700. 2- to 6-pole terminal blocks in green with a 90° wire entry angle (top wire entry) screw-cage clamp principle suitable for a conductor cross-section of 4,0mm² (single-stranded wire) resp. 2,5mm² (fine-stranded wire) insulator is made of PA (UL94V-0) rated voltage: 250V rated current: 24A pitch: 5mm

Specifications

manufacturer
Manufacturer's name AK700/4-5.0-H-GRÜN
Design screw-cage...
Number of poles 4
Height [mm] 18
Pitch [mm] 5
T [mm] 10,5
Length [mm] 20,6
Data Sheet

Unit price

0,644 €

Stock: 600
Further delivery:
CW 23/2024

Minimum order quantity 50 units or
multiples of 50.
