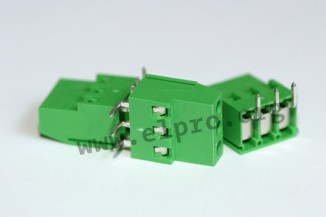

PTR terminal block series AK700

  • 2- to 6-pole terminal blocks in green with a 90° wire entry angle (top wire entry)
  • screw-cage clamp principle
  • suitable for a conductor cross-section of 4,0mm² (single-stranded wire) resp. 2,5mm² (fine-stranded wire)...

PTR terminal block series AK700

  • 2- to 6-pole terminal blocks in green with a 90° wire entry angle (top wire entry)
  • screw-cage clamp principle
  • suitable for a conductor cross-section of 4,0mm² (single-stranded wire) resp. 2,5mm² (fine-stranded wire)
  • insulator is made of PA (UL94V-0)
  • rated voltage: 250V
  • rated current: 24A
  • pitch: 5mm
> More
Data Sheet
Showing 1 - 5 of 5 products
  • Product Stock Unit price Volume discounts
  • PTR
    AK 700/02-5,0-H
    0,355 €
    13811 AK 700/02-5,0-H AK4551/10KD-3.5-GRÜN AK4551/10KD-3.5-GRÜN
    0,355 €

    More
    Stock: 7923
  • PTR
    AK 700/03-5,0-H
    0,483 €
    13813 AK 700/03-5,0-H AK4551/10KD-3.5-GRÜN AK4551/10KD-3.5-GRÜN
    0,483 €

    More
    Stock: 8409
  • PTR
    PTR terminal blocks
    0,644 €
    112430 AK 700/04-5,0-H AK700/4-5.0-H-GRÜN AK700/4-5.0-H-GRÜN
    0,644 €

    More
    Stock: 600
  • PTR
    PTR terminal blocks
    0,775 €
    112432 AK 700/05-5,0-H AK700/5-5.0-H-GRÜN AK700/5-5.0-H-GRÜN
    0,775 €

    More
    Stock: 200
  • PTR
    PTR terminal blocks
    0,931 €
    112434 AK 700/06-5,0-H AK700/6-5.0-H-GRÜN AK700/6-5.0-H-GRÜN
    0,931 €

    More
    Stock: 150
Showing 1 - 5 of 5 products
