AKZ 120/02 DS-5,08-V-blau

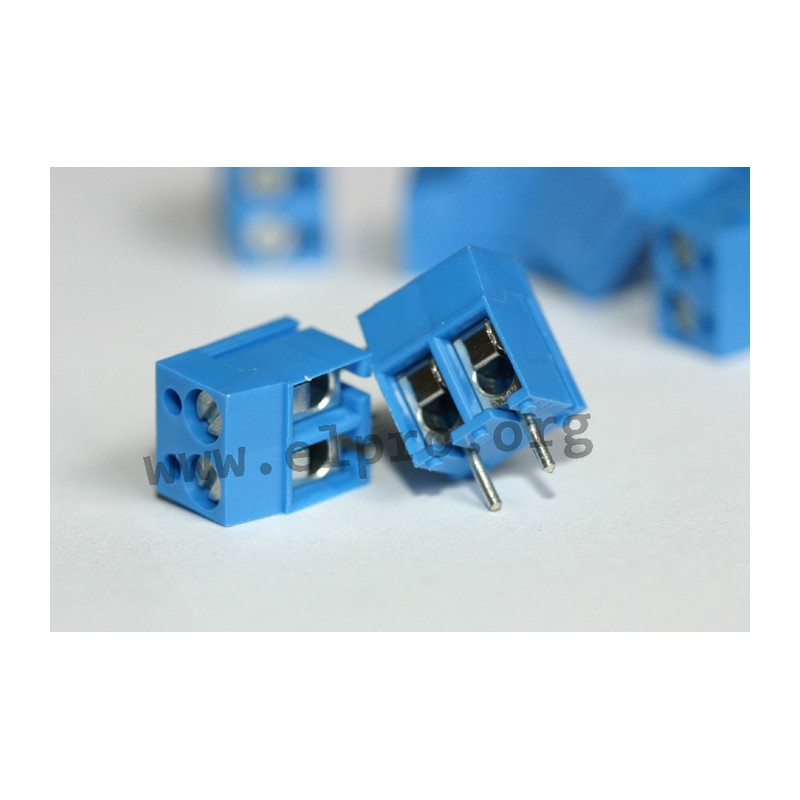

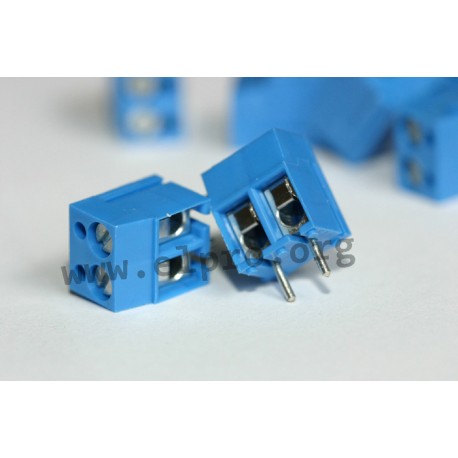

PTR terminal block series AKZ120

  • 2- to 6-pole terminal blocks with a side wire entry in blue
  • screw principle with wire guard
  • suitable for a conductor cross-section of up to 2,5mm²
  • insulator is made of PA (UL94V-0)
  • rated voltage: 250V
  • rated current: 24A
  • pitch: 5,08mm
AKZ 120/02 DS-5,08-V-blau

AKZ 120/02 DS-5,08-V-blau

13824 AKZ 120/02 DS-5,08-V-blau AKZ120/2DS-5,08-V-BL AKZ120/2DS-5,08-V-BL PTR terminal block series AKZ120. 2- to 6-pole terminal blocks with a side wire entry in blue screw principle with wire guard suitable for a conductor cross-section of up to 2,5mm² insulator is made of PA (UL94V-0) rated voltage: 250V rated current: 24A pitch: 5,08mm

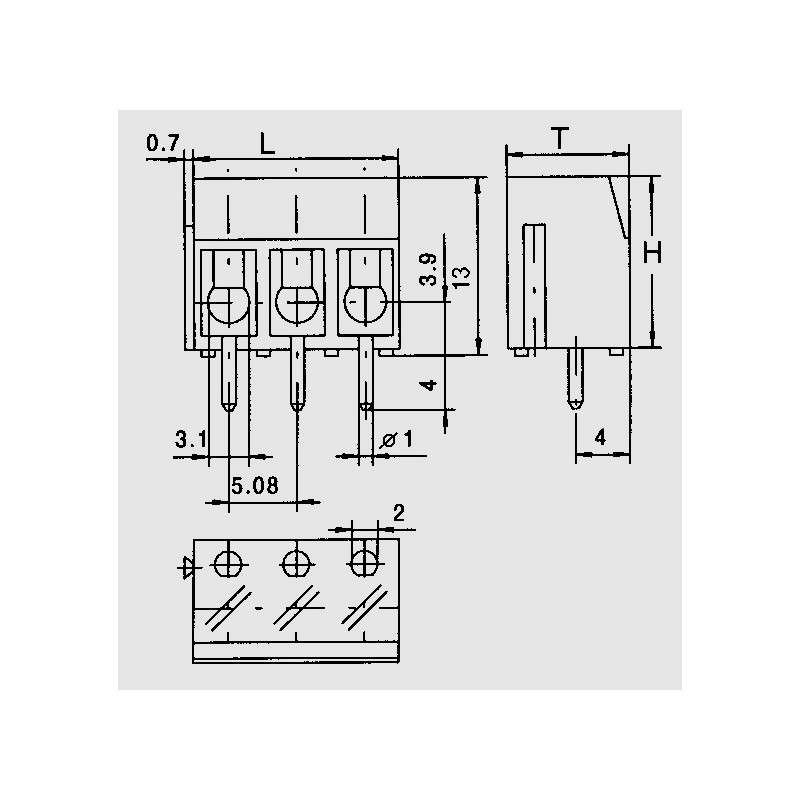

Specifications

manufacturer
Manufacturer's name AKZ120/2DS-5...
Design screw principle
Number of poles 2
Height [mm] 12,5
Pitch [mm] 5,08
T [mm] 9
Length [mm] 10,86
Data Sheet

Unit price

0,189 €

Stock: 10000
Next incoming goods:
CW 23/2024
5500 units

Further delivery:
CW 24/2024

Minimum order quantity 50 units or
multiples of 50.
