AKZ 700/03-5,08

PTR terminal block series AKZ700

  • terminal blocks with a side wire entry in green
  • 2-, 3-, 4, 5-, 6- or 8-pole
  • screw-cage clamp principle
  • suitable for a conductor cross-section of up to 4mm² (single stranded wire) resp. 2,5mm² (fine stranded wire)
  • insulator is made of PA (UL94V-0)
  • rated voltage: 250V
  • rated current: 24A
  • pitch: 5,08mm
series AKZ 700 by PTR

AKZ 700/03-5,08

13830 AKZ 700/03-5,08 AKZ700/3-5,08-V/GRUE AKZ700/3-5,08-V/GRUE PTR terminal block series AKZ700. terminal blocks with a side wire entry in green 2-, 3-, 4, 5-, 6- or 8-pole screw-cage clamp principle suitable for a conductor cross-section of up to 4mm² (single stranded wire) resp. 2,5mm² (fine stranded wire) insulator is made of PA (UL94V-0) rated voltage: 250V rated current: 24A pitch: 5,08mm

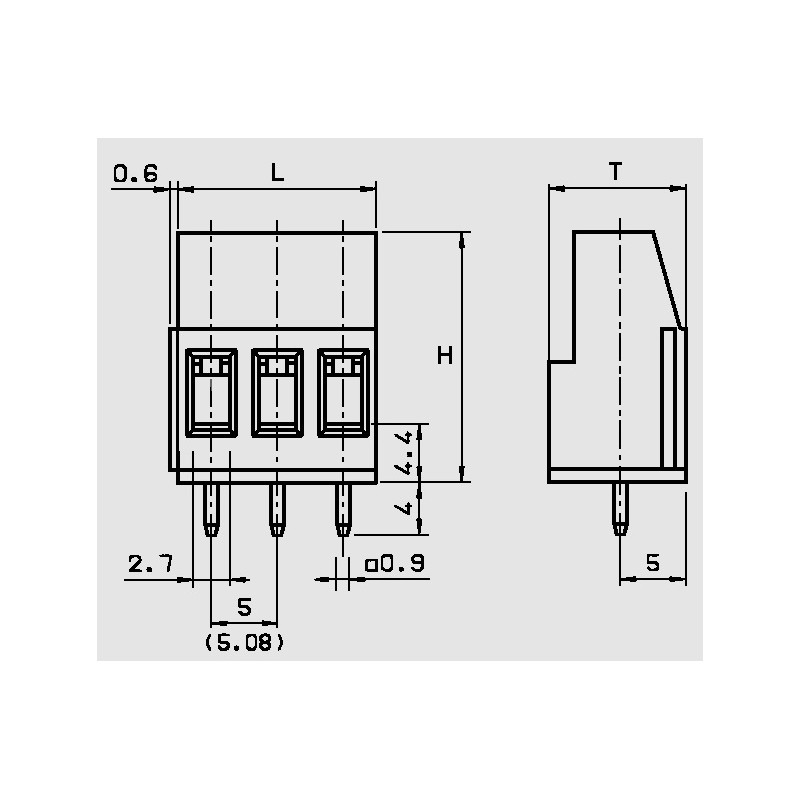

Specifications

manufacturer
Manufacturer's name AKZ700/3-5,0...
Design screw-cage...
Number of poles 3
Height [mm] 19
Pitch [mm] 5,08
T [mm] 10,5
Length [mm] 15,84
Data Sheet

Unit price

0,475 €

Stock: 4914
Next incoming goods:
CW 23/2024
3400 units

Further delivery:
CW 24/2024

Minimum order quantity 1 to 14 units or multiples of 50 plus 0 to 14 .
