STL 1550/02 G-3,5-V

PTR box header series STL1550

  • pin direction: vertical
  • pitch: 3.5mm
  • 2-, 3-, 4-, 5-, 6-, 8- or 10-pole
  • rated voltage (EN 61984): 160V
  • rated current (T60): 9A
  • test voltage: 2.5kV
  • PCB hole diameter: 1.2mm
  • insulating material: PA
  • temperature range: -30 to +105°C
  • flammability class: UL94V-0
  • colour: green

Matching multiconnectors

series STL1550_V by PTR

STL 1550/02 G-3,5-V

13917 STL 1550/02 G-3,5-V STL1550/2G-3.5-V-GRUEN STL1550/2G-3.5-V-GRUEN PTR box header series STL1550. pin direction: vertical pitch: 3.5mm 2-, 3-, 4-, 5-, 6-, 8- or 10-pole rated voltage (EN 61984): 160V rated current (T60): 9A test voltage: 2.5kV PCB hole diameter: 1.2mm insulating material: PA temperature range: -30 to +105°C flammability class: UL94V-0 colour: green Matching multiconnectors

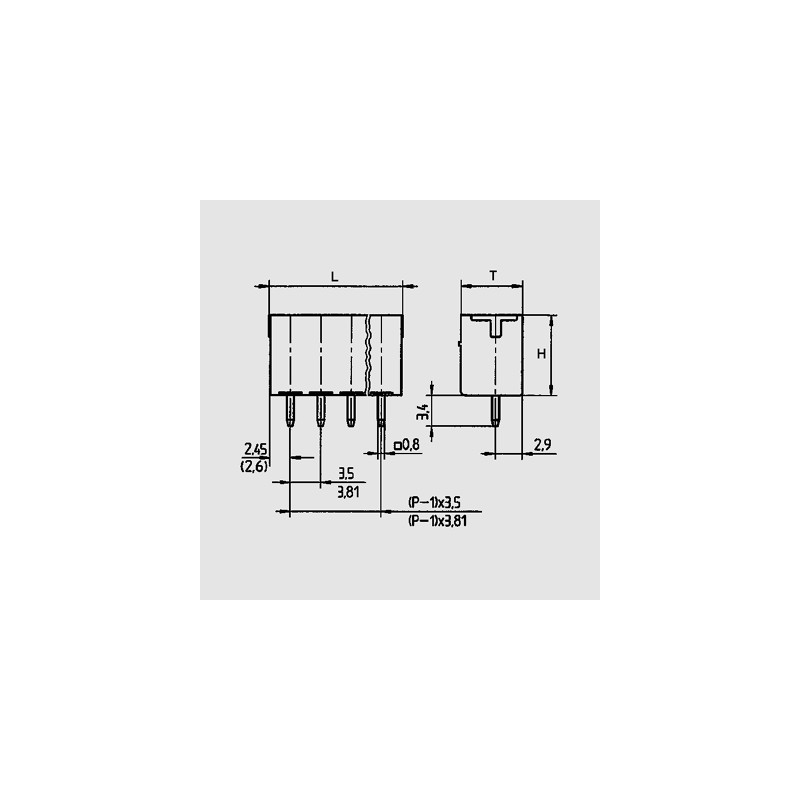

Specifications

manufacturer
Manufacturer's name STL1550/2G-3...
Number of poles 2
Height [mm] 9,2
Pitch [mm] 3,5
T [mm] 7,0
Length [mm] 8,4
Data Sheet

Unit price

0,178 €

Stock: 4340
Next incoming goods:
CW 51/2025
2800 units

Further delivery:
CW 03/2026

Minimum order quantity 10 units or
multiples of 10.
