534 2 k

2W

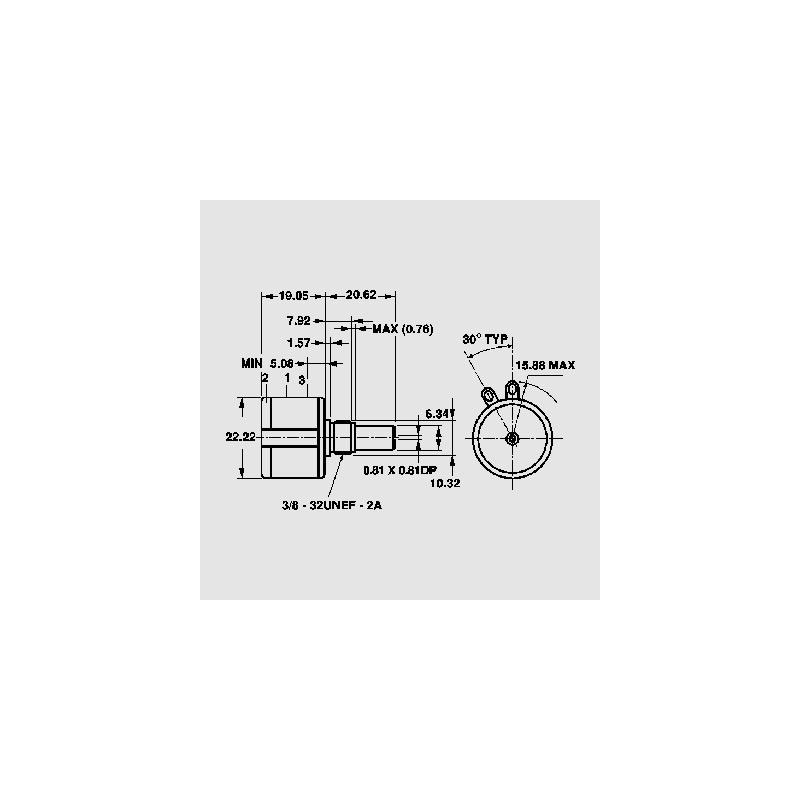

* 6.35mm metal spindle, thread 3/8-32UNEF-2A
* high mechanical strength
* rated dissipation (70°C): 2W
* hold-off voltage: 500V
* dielectric strength (RMS): 1000V
* standard tolerance: ±5%
* independent linearity: ±0.25%
* rotation angle
mechanical: 3600° ±10°
electrical: 3600° ±10°
* operating torque: 0.28...0.35Ncm
* end stop torque: 53Ncm
* temperature range: -55...+125°C
* temperature coefficient (typ.): 20ppm/°C

534 2 k

5555 534 2 k 534B1202JC 534B1202JC 2W. * 6.35mm metal spindle, thread 3/8-32UNEF-2A* high mechanical strength* rated dissipation (70°C): 2W* hold-off voltage: 500V* dielectric strength (RMS): 1000V* standard tolerance: ±5%* independent linearity: ±0.25%* rotation anglemechanical: 3600° ±10°electrical: 3600° ±10°* operating torque: 0.28...0.35Ncm* end stop torque: 53Ncm* temperature range: -55...+125°C* temperature coefficient (typ.): 20ppm/°C

Specifications

manufacturer
Manufacturer's name 534B1202JC
Resistance [Ω] 2k
Power, max. [W] 2
Data Sheet

Unit price

11,69 €

Stock: 104
Further delivery:
CW 28/2024
