218-112

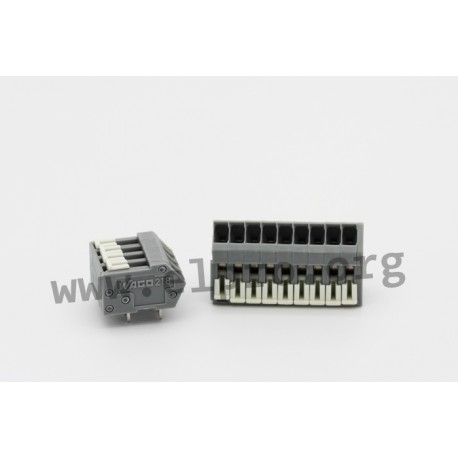

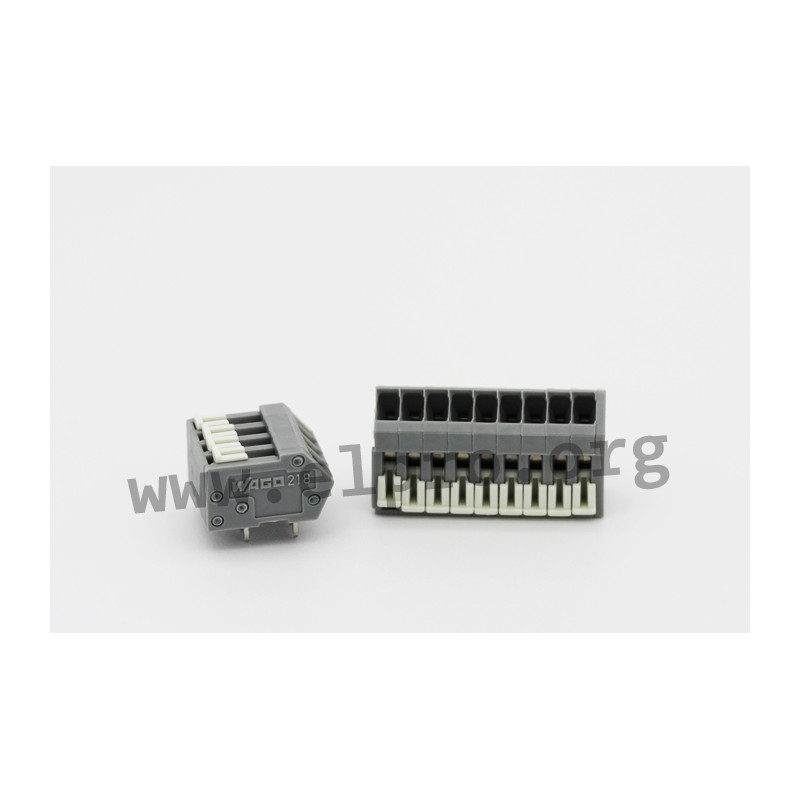

Wago spring terminal block series 218

  • 2- to 14-pole spring terminal blocks with a lever (CAGE CLAMP® slide actuation) in grey
  • 40° wire entry angle
  • 2 soldering pins per pole and an insulator made of PA 6.6 (UL94V-0)
  • suitable for a wire cross section of 0,08 to 0,5mm²
  • simplifying the connection of multi-core cables in confined spaces
  • several clamping points can be held in the open position
  • rated voltage: 160V
  • rated current: 6A
  • pitch: 2,5mm

218-112

106763 218-112 218-112 Wago spring terminal block series 218. 2- to 14-pole spring terminal blocks with a lever (CAGE CLAMP® slide actuation) in grey 40° wire entry angle 2 soldering pins per pole and an insulator made of PA 6.6 (UL94V-0) suitable for a wire cross section of 0,08 to 0,5mm² simplifying the connection of multi-core cables in confined spaces several clamping points can be held in the open position rated voltage: 160V rated current: 6A pitch: 2,5mm

Specifications

manufacturer
Manufacturer's name 218-112
Number of poles 12
Length [mm] 31,5
Data Sheet

Unit price

4,39 €

Stock: 410
Further delivery:
CW 18/2024

Minimum order quantity 5 units or
multiples of 5.
