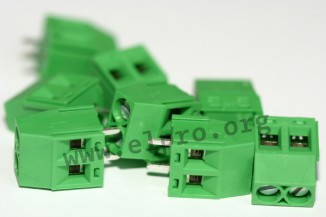

PTR terminal block series AK350

  • screw-cage clamp principle
  • side wire entry
  • 2-, 3-, 4-, 5- or 6-pole
  • pitch: 5mm
  • rated voltage (EN 60998): 250V
  • rated current (T60): 17,5A
  • test voltage: 2kV
  • rated cross section single-stranded wire: 2.5mm²
  • rated cross...

PTR terminal block series AK350

  • screw-cage clamp principle
  • side wire entry
  • 2-, 3-, 4-, 5- or 6-pole
  • pitch: 5mm
  • rated voltage (EN 60998): 250V
  • rated current (T60): 17,5A
  • test voltage: 2kV
  • rated cross section single-stranded wire: 2.5mm²
  • rated cross section fine-stranded wire: 1.5mm²
  • stripped length: 6mm
  • insulating material: PA
  • temperature range: -30 to +105°C
  • flammability class: UL94V-0
  • colour: green
> More
Data Sheet
Showing 1 - 5 of 5 products
  • Product Stock Unit price Volume discounts
  • PTR
    AK 350/02-5,0-V
    0,303 €
    13789 AK 350/02-5,0-V AK350/2-5,0-V/GRUEN AK350/2-5,0-V/GRUEN
    0,303 €

    More
    Stock: 8050
  • PTR
    AK 350/03-5,0-V
    0,455 €
    13790 AK 350/03-5,0-V AK350/3-5,0-V/GRUEN AK350/3-5,0-V/GRUEN
    0,455 €

    More
    Stock: 3250
  • PTR
    PTR terminal blocks
    0,607 €
    112436 AK 350/04-5,0-V AK350/4-5.0-V-GRÜN AK350/4-5.0-V-GRÜN
    0,607 €

    More
    Stock: 400
  • PTR
    PTR terminal blocks
    0,73 €
    112437 AK 350/05-5,0-V AK350/5-5.0-V-GRÜN AK350/5-5.0-V-GRÜN
    0,73 €

    More
    Stock: 100
  • PTR
    PTR terminal blocks
    0,876 €
    112438 AK 350/06-5,0-V AK350/6-5.0-V-GRÜN AK350/6-5.0-V-GRÜN
    0,876 €

    More
    Stock: 350
Showing 1 - 5 of 5 products
