PTR multiconnector series AKZ1100

  • screw-cage clamp principle
  • conductor: horizontal
  • pitch: 5.08mm
  • 2-, 3-, 4-, 5- or 6-pole
  • rated voltage (EN 61984): 250V
  • rated current (T60): 10A
  • measured impulse voltage: 4kV
  • rated cross section single-stranded wir...

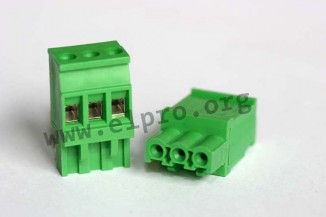

PTR multiconnector series AKZ1100

  • screw-cage clamp principle
  • conductor: horizontal
  • pitch: 5.08mm
  • 2-, 3-, 4-, 5- or 6-pole
  • rated voltage (EN 61984): 250V
  • rated current (T60): 10A
  • measured impulse voltage: 4kV
  • rated cross section single-stranded wire: 4.0mm²
  • rated cross section fine-stranded wire: 2.5mm²
  • stripped length: 7mm
  • insulating material: PA
  • temperature range: -30 to +105°C
  • flammability class: UL94V-0
  • colour: green

Matching box headers straight

Matching box headers angled

> More
Data Sheet
Showing 1 - 5 of 5 products
  • Product Stock Unit price Volume discounts
  • PTR
    AKZ 1100/02-5,0
    0,643 €
    13820 AKZ 1100/02-5,0 AKZ1100/2-5,08/GRUEN AKZ1100/2-5,08/GRUEN
    0,643 €

    More
    Stock: 1780
  • PTR
    AKZ 1100/03-5,0
    0,93 €
    13821 AKZ 1100/03-5,0 AKZ1100/3-5,08/GRUEN AKZ1100/3-5,08/GRUEN
    0,93 €

    More
    Stock: 1314
  • PTR
    AKZ 1100/04-5,0
    1,24 €
    13822 AKZ 1100/04-5,0 AKZ1100/4-5,08/GRUEN AKZ1100/4-5,08/GRUEN
    1,24 €

    More
    Stock: 53
  • PTR
    AKZ 1100/05-5,0
    1,55 €
    13823 AKZ 1100/05-5,0 AKZ1100/5-5,08/GRUEN AKZ1100/5-5,08/GRUEN
    1,55 €

    More
    Stock: 270
  • PTR
    PTR multiconnectors
    1,86 €
    112474 AKZ 1100/06-5,0 AKZ1100/6-5.08-GRÜN AKZ1100/6-5.08-GRÜN
    1,86 €

    More
    Stock: 97
Showing 1 - 5 of 5 products
