AKZ 1100/05-5,0

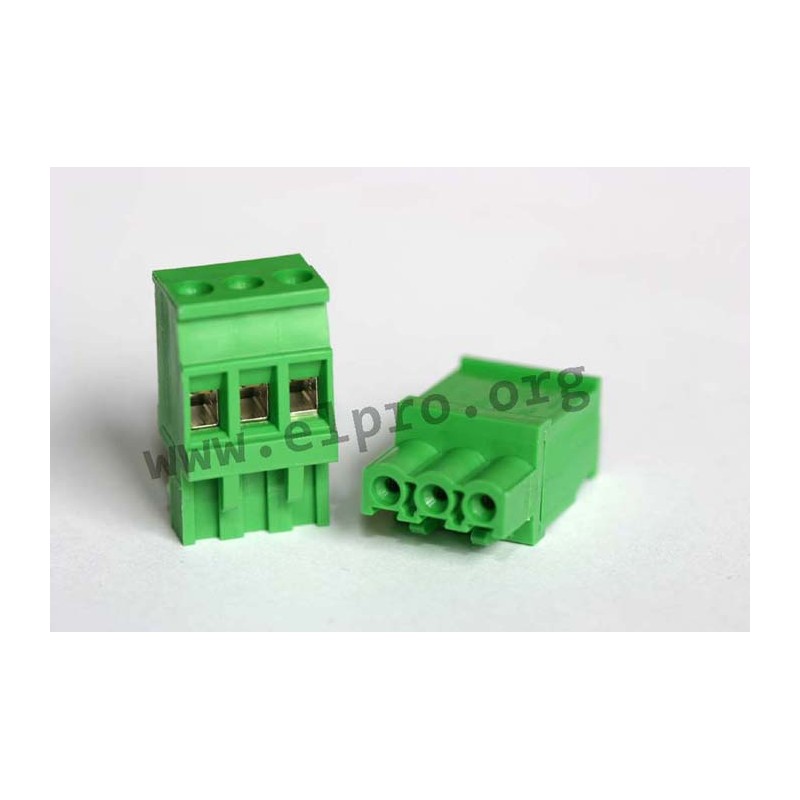

PTR multiconnector series AKZ1100

  • screw-cage clamp principle
  • conductor: horizontal
  • pitch: 5.08mm
  • 2-, 3-, 4-, 5- or 6-pole
  • rated voltage (EN 61984): 250V
  • rated current (T60): 10A
  • measured impulse voltage: 4kV
  • rated cross section single-stranded wire: 4.0mm²
  • rated cross section fine-stranded wire: 2.5mm²
  • stripped length: 7mm
  • insulating material: PA
  • temperature range: -30 to +105°C
  • flammability class: UL94V-0
  • colour: green

Matching box headers straight

Matching box headers angled

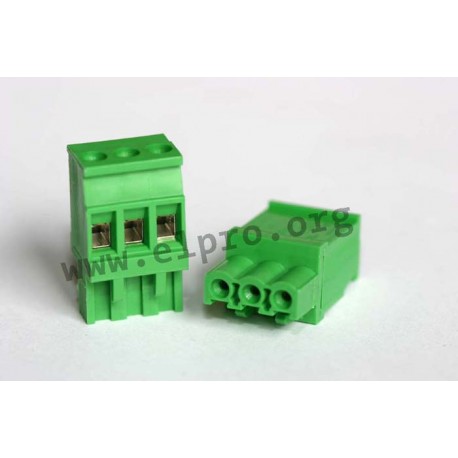

PTR multiconnectors

AKZ 1100/05-5,0

13823 AKZ 1100/05-5,0 AKZ1100/5-5.08-GRUEN AKZ1100/5-5.08-GRUEN PTR multiconnector series AKZ1100. screw-cage clamp principle conductor: horizontal pitch: 5.08mm 2-, 3-, 4-, 5- or 6-pole rated voltage (EN 61984): 250V rated current (T60): 10A measured impulse voltage: 4kV rated cross section single-stranded wire: 4.0mm² rated cross section fine-stranded wire: 2.5mm² stripped length: 7mm insulating material: PA temperature range: -30 to +105°C flammability class: UL94V-0 colour: green Matching box headers straight Matching box headers angled

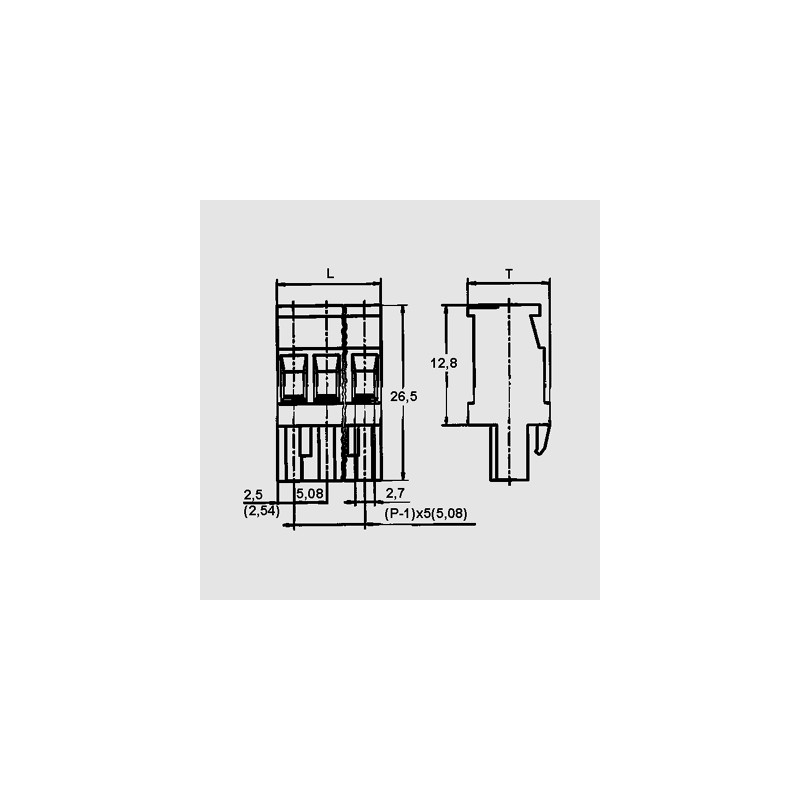

Specifications

manufacturer
Manufacturer's name AKZ1100/5-5....
Design screw-cage...
Number of poles 5
Height [mm] 26
Pitch [mm] 5,08
T [mm] 12,5
Length [mm] 25,40
Data Sheet

Unit price

1,55 €

Stock: 230
Further delivery:
CW 03/2026

Minimum order quantity 10 units or
multiples of 10.
