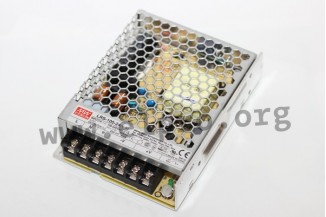

Mean Well power supply series LRS-100

Switching power supplies in an enclosed housing with 100W, a universal input, a low profile (1U), screw terminals and a low no-load power (<0,3W). These devices are suitable for an operating altitude of up to 5000m and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a high efficiency and comply with UL/EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: LRS-100-5, LRS-100-12, LRS-100-15, LRS-100-24, LRS-100-36 and LRS-100-48.

single output
output: 66 to 110,4W
input voltage: 85 to 264V AC (47 to 63Hz), 120 to 373V DC
maximal input inrush current: 50A
leakage current: <0,75mA
output voltage adjustment: ±10%
overload protection: 110 to 150%
withstand voltage I/P-O/P: 3750V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 1250V AC
operating temperature: -30 to +70°C
weight: 340g
