Mean Well power supply series RPS-500

Compact 5" x 3", open frame switching power supplies with a universal input and a contact pin for nylon-crimp terminals. These devices with a high efficiency of up to 94% are protected against short-circuit, o...

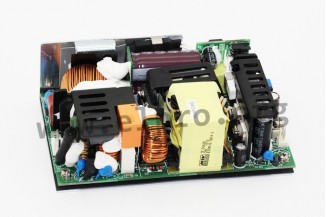

Mean Well power supply series RPS-500

Compact 5" x 3", open frame switching power supplies with a universal input and a contact pin for nylon-crimp terminals. These devices with a high efficiency of up to 94% are protected against short-circuit, overvoltage, overtemperature and overload (hiccup mode, auto recovery). They are in compliance with the safety standard EN 60601-1 and the EMC standards EN 61000-3-2 and EN 61000-3-3. Furthermore, they have a low no load power consumption (<0,5W via PS-ON control), a status LED, a low standby power consumption (5V/1A) and an auxiliary ouput (12V/0,5A). We offer the types RPS-500-12, RPS-500-15, RPS-500-18, RPS-500-24, RPS-500-27, RPS-500-36 and RPS-500-48 of this series by Mean Well.

  • single output
  • output: 500W with forced air
  • input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC
  • weight: 460g
  • maximal input inrush current: 80A
  • operating temperature: -30 to +70°C
  • leakage current earth: <220µA
  • leakage current touch: <100µA
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 4000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
> More
Download

Showing 1 - 7 of 7 items
  • article stock price volume discount
  • MeanWell
    Mean Well RPS-500 series
    75,10 €
    113382 RPS-500-12 RPS-500-12
    75,10 €
    20 pcs. / 66,40 €
    stock: 89
  • MeanWell
    Mean Well RPS-500 series
    75,10 €
    113383 RPS-500-15 RPS-500-15
    75,10 €
    20 pcs. / 66,40 €
    stock: 29
  • MeanWell
    Mean Well RPS-500 series
    75,10 €
    113384 RPS-500-18 RPS-500-18
    75,10 €
    20 pcs. / 66,40 €
    stock: 29
  • MeanWell
    Mean Well RPS-500 series
    75,10 €
    113385 RPS-500-24 RPS-500-24
    75,10 €
    20 pcs. / 66,40 €
    stock: 89
  • MeanWell
    Mean Well RPS-500 series
    75,10 €
    113386 RPS-500-27 RPS-500-27
    75,10 €
    20 pcs. / 66,40 €
    stock: 29
  • MeanWell
    Mean Well RPS-500 series
    75,10 €
    113387 RPS-500-36 RPS-500-36
    75,10 €
    20 pcs. / 66,40 €
    stock: 29
  • MeanWell
    Mean Well RPS-500 series
    75,10 €
    113388 RPS-500-48 RPS-500-48
    75,10 €
    20 pcs. / 66,40 €
    stock: 24
Showing 1 - 7 of 7 items
