AK 700/02-5,0-H

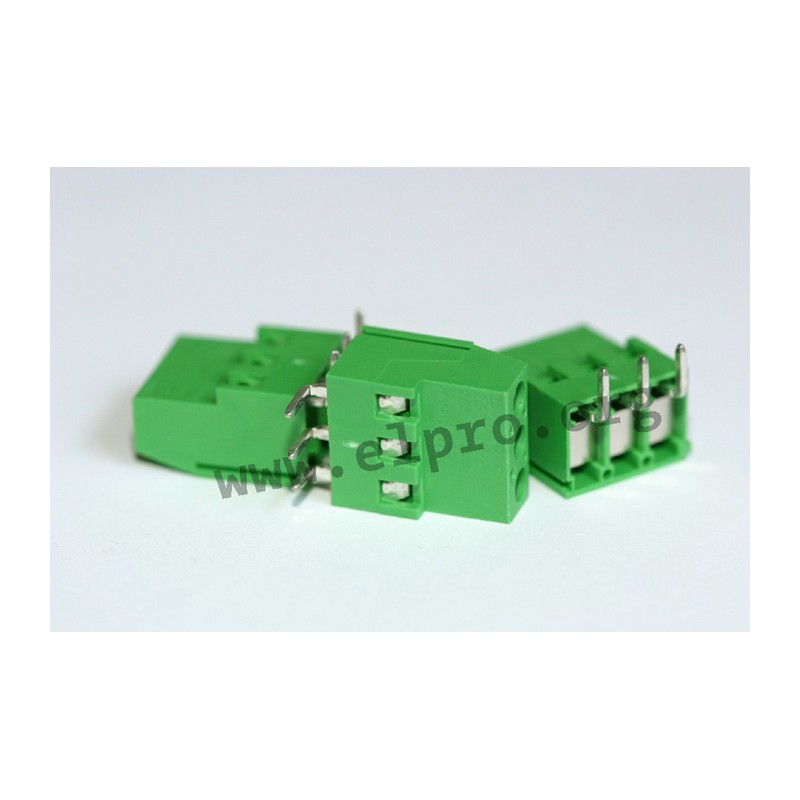

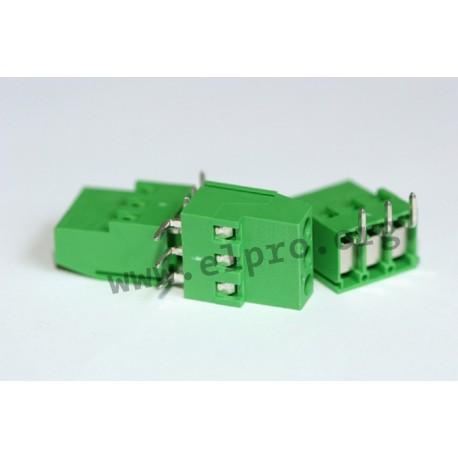

PTR terminal block series AK700

  • 2- to 6-pole terminal blocks in green with a 90° wire entry angle (top wire entry)
  • screw-cage clamp principle
  • suitable for a conductor cross-section of 4,0mm² (single-stranded wire) resp. 2,5mm² (fine-stranded wire)
  • insulator is made of PA (UL94V-0)
  • rated voltage: 250V
  • rated current: 24A
  • pitch: 5mm
PTR terminal blocks

AK 700/02-5,0-H

13811 AK 700/02-5,0-H AK4551/10KD-3.5-GRÜN AK4551/10KD-3.5-GRÜN PTR terminal block series AK700. 2- to 6-pole terminal blocks in green with a 90° wire entry angle (top wire entry) screw-cage clamp principle suitable for a conductor cross-section of 4,0mm² (single-stranded wire) resp. 2,5mm² (fine-stranded wire) insulator is made of PA (UL94V-0) rated voltage: 250V rated current: 24A pitch: 5mm

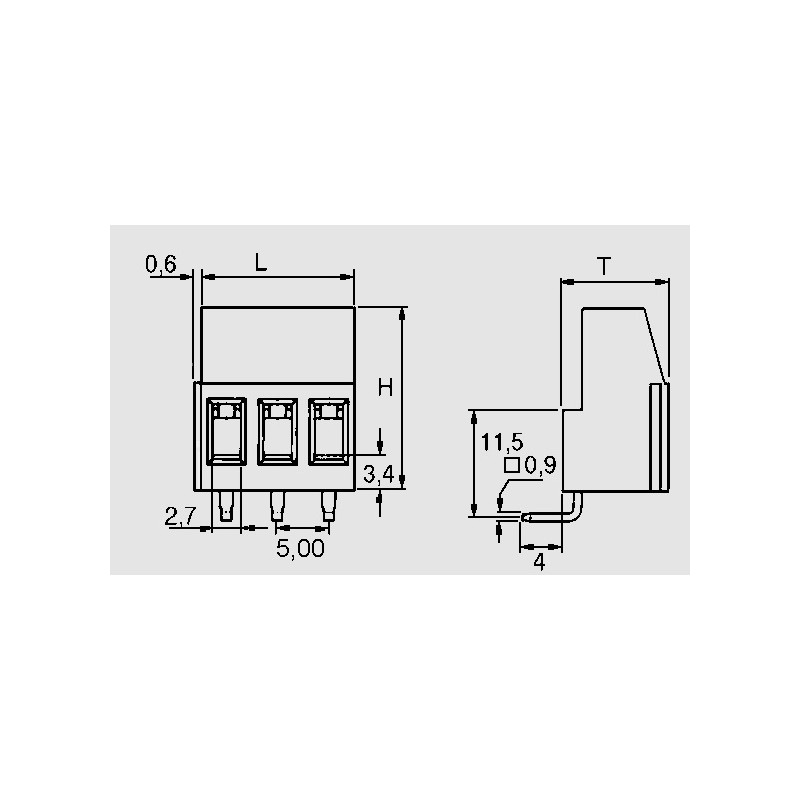

Specifications

manufacturer
Manufacturer's name AK4551/10KD-...
Design screw-cage...
Number of poles 2
Height [mm] 18
Pitch [mm] 5
T [mm] 10,5
Length [mm] 10,6
Data Sheet

Unit price

0,355 €

Stock: 7923
Next incoming goods:
CW 21/2024
1800 units

Further delivery:
CW 24/2024

Minimum order quantity 1 to 23 units or multiples of 50 plus 0 to 23 .
